How long does it take to sand one door?

Under 30 seconds per door - that includes profiling, multi-grit sanding, and corner breaking in a single pass. Over an 8-hour shift, that's hundreds of doors with consistent, production-ready edges.

Is it effective on primer and paint-grade MDF?

Absolutely. The Ultimate Edge Sander was specifically designed with MDF, solid wood, and primer doors in mind. The multi-grit sequence and controlled pressure ensure clean, consistent edges without burning through primer coats or leaving uneven finishes.

Can I turn off the corner breaking function?

Yes. The corner breaking function can be enabled or disabled through the HMI controls. Some operations require a sharp edge, others need a break - you control it per run without any hardware changes.

🚀Now Shipping to the United States!|

Made in Canada

Ultimate Edge Sander: Edge Sand & Corner Break in One Pass

Q: Can the Ultimate Edge Sander handle different door sizes?

Yes. The Ultimate Edge Sander adjusts to accommodate a range of door sizes and thicknesses. Operators set the dimensions on the touch screen HMI, and the machine handles the rest. Switching between sizes is fast - no mechanical changeover required.

3 Grits · 1 Pass · Perfect Edges

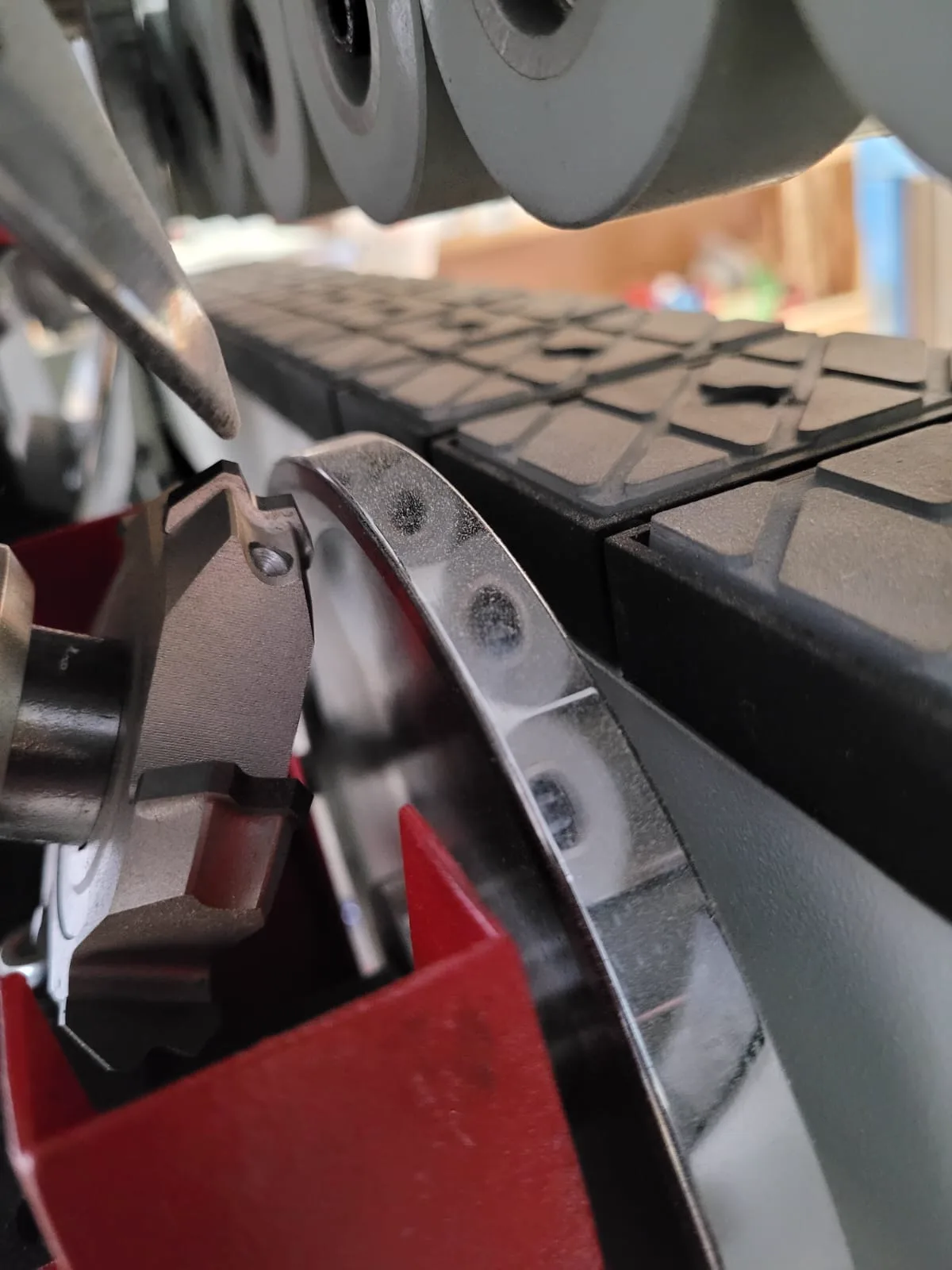

The Ultimate Edge Sander is specifically designed for MDF and Solid wood parts. It routes a profile using a high speed trimmer and then has three 5" orbital sanders in line giving you proper grit progression. Finally it has two 2 inch orbital sanders on a 45 degree angle to break and sand the corners in a single pass.

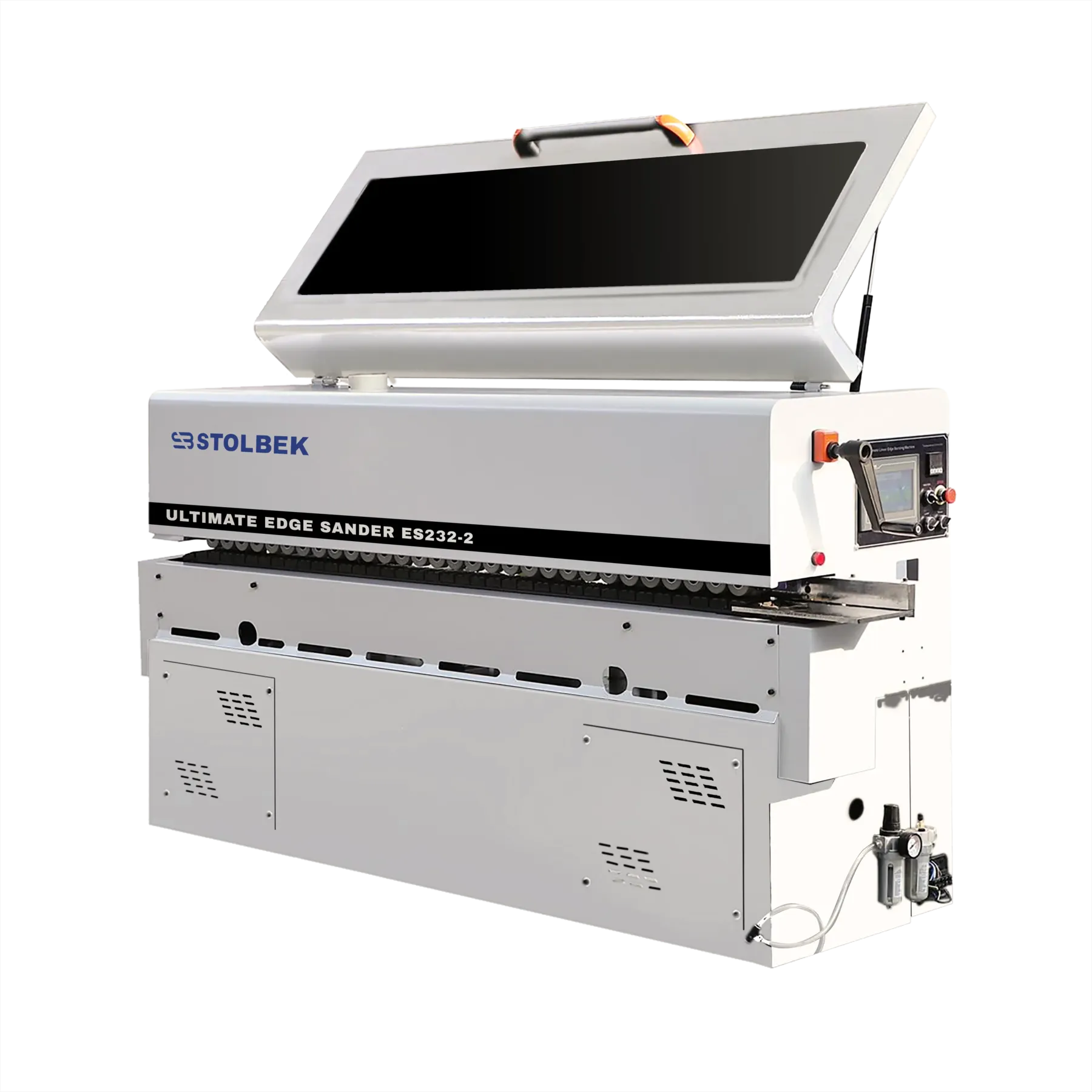

Ultimate Edge Sander automatic edge sanding machine with corner breaking

Key Features

Why Choose the Ultimate Edge Sander

30 Seconds Per Door

Profile, sand, and corner break all in under 30 seconds per door. That's not a typo.

3 Grits in Series

Multiple grit stages in a single pass for a production-ready edge finish every time.

PLC Controller

Touch screen HMI controls for reliable, repeatable operation across every shift.

Corner Break Built In

Automatic corner breaking integrated into the sanding pass - no separate operation needed.

QR Video Instructions

Fast access to detailed video instructions via QR codes. No complicated manuals.

Made in Canada

Designed, engineered and built right here in Ontario, Canada with full warranty support.

Capabilities

Profile, Sand & Corner Break

Route profiles in a single pass

3 grits applied in series for finished edges

Corner breaking integrated into the process

Touch screen HMI for easy operation

PLC-driven for industrial reliability

QR code video instructions for operators

Best For

MDF and solid wood parts. Including doors, drawers, trim and even solid surface like Corian. Not only can it sand raw wood it can even sand primed edges without sanding through. Ideal as a standalone or complement to a Cosmo system.

See why shops are automating their sanding · Read what our customers say

Specifications

Technical Details

< 30s

Per Part

Grits

PLC

Controller

1 Year

Warranty

Gallery

See the Ultimate Edge Sander

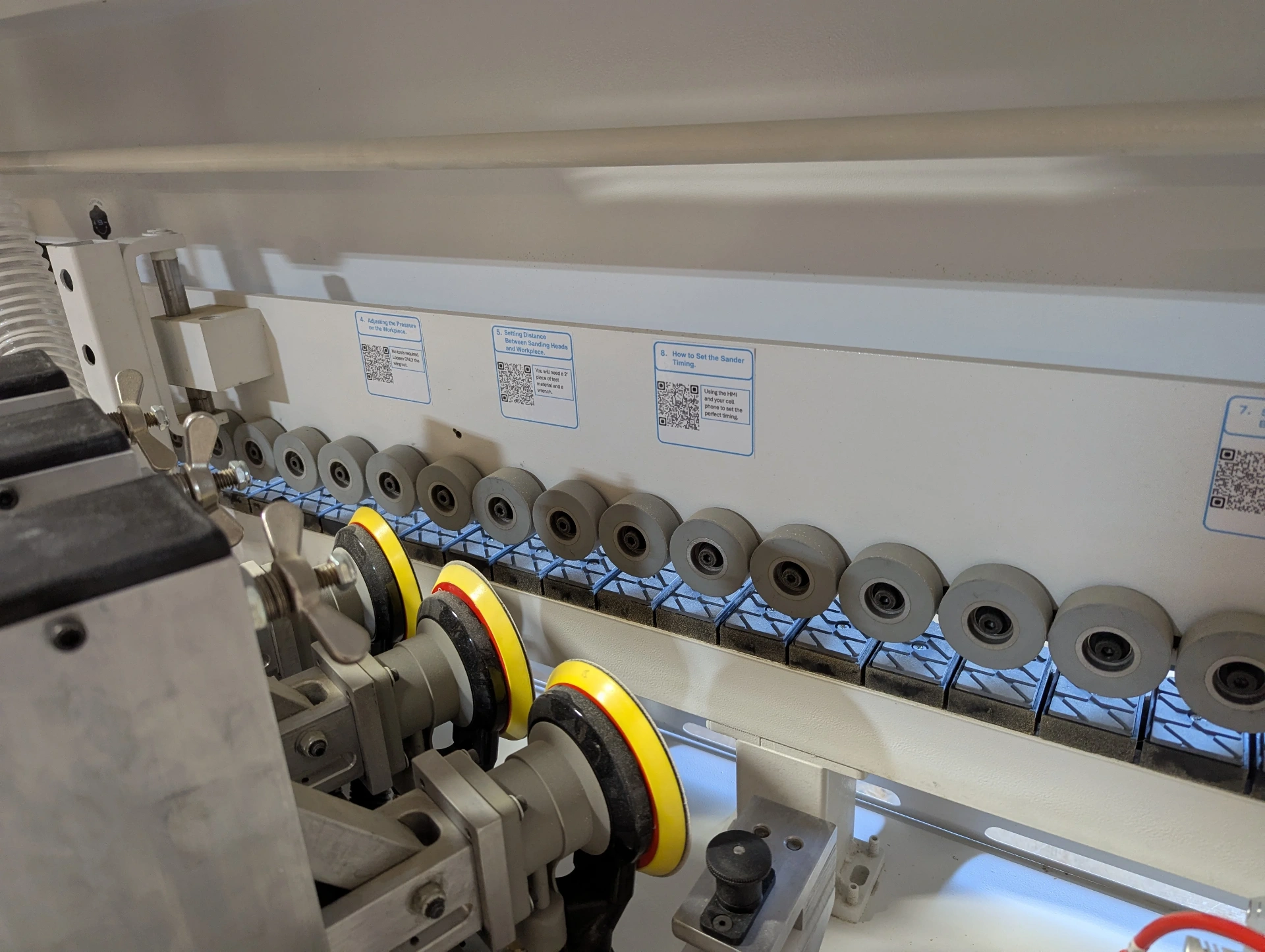

Ultimate Edge Sander rollers and sanding heads

Quality & Support

Quality You Can Trust. Service You Can Rely On.

Made in Canada

Designed, engineered and built in Ontario, Canada.

Full Warranty

Quality components backed by Stolbek's full 1 year warranty.

VIP Support

Direct access to service technicians. Skip the wait line.

Customer Reviews

What Customers Say

★★★★★

"We purchased an Ultimate Edge sander from Stolbek last summer. The entire order process was very simple and machine setup only took about an hour. Thi…"

David Peterson

Google review

★★★★★

"We bought the Stolbek edge sanding machine last year and could not be happier with the output this thing does. We got bottlenecked with our sanding pr…"

Mark Guay

Google review

FAQ

Frequently Asked Questions

Yes. The Ultimate Edge Sander adjusts to accommodate a range of door sizes and thicknesses. Operators set the dimensions on the touch screen HMI, and the machine handles the rest. Switching between sizes is fast - no mechanical changeover required.
